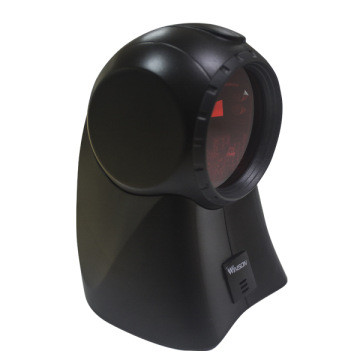

Winson desktop scanner 20 lines 1D omni-directions laser scanner/ USB


Product Description

1.High-performance, 20-line rastering omni-directional scan pattern, increased productivity for novice and expert users, resulting in shorter checkout lines, better customer service
2.High-performance optics,delivers superior data capture, even on high density bar codes
3.Extra loud beeper,confirms positive decode feedback in noisy environments
4.Multiple onboard interfaces,flexible host connectivity protects your hardware investment
5.Universal cables,allows for easy replacement and/or upgrades
6.Built-in shock absorption,protects scan module assembly increasing durability
7.Flash memory,facilitates updates and customization of product in the field
8.Reads GS1DataBar (formerly RSS) Symbologies,compatibility with new symbology leverages your hardware investment
Application and Solution of barcode scanner
Clothing, retail chain store, warehouse management, e-business, commercial retail, logistics express and file management, etc
barcode scanner Description
Power Voltage Requirement 5V±10%
Current Consumption 180mA at 5.0V
Laser Class CDRH Class II,; IEC 60825-1:Class 2
EMC CE,En55022 B,FCC Part 15 Class B ,VCCI,BSMI
Performance Characteristics Light Source 650 nm visible laser diode(VLD)
Depth of Field 0-206mm(UPC/EAN 100%,PCS=90%)
Scan line 20
Scan Pattern 5directions of scan field
Scan rate 1200scans per second (omnidirectional);
Resolution 5mil, Min. PCS value: 90%
Print Contrast 30%UPC/EAN 100%
Indicators Two-color LED (blue, red)
Beeper Operation Programmable tone & volume
System Interfaces Keyboard, RS-232, HID USB
Physical Dimensions 180x 140x 102  mm( H x D x W )
Weight 385g
Cable length 2m
Durability Temperature 0°- 40°C/32°F - 104°F (operation) ,20°- 60°C/-4°F -140°F(storage)
Humidity 5 - 90% (no dewing allowed))
Ambient light immunity Up to 2500 Lux(fluorescence)
Drop Test  1m / 3.3 ft drop onto concrete surface
Contain Accessories Cable(USB,RS232,PS2), User Guide, DC Power Supply (RS232)
Supported symbologies UPC/EAN/JAN, UPC-A&UPC-E, EAN-8&EAN-13, JAN-8&JAN-13, ISBN/ISSN, Code 39(with full ASCII), Codabar(NW7), Code 128&EAN 128, Code 93, Interleaved 2 of 5(ITF), Addendum 2 of 5, IATA Code,China Postal Code, Code 32(Italian Pharmacode), MSI/Plessy,RSS 14, RSS Limited, RSS Expanded
Depth of field


2 Years Warranty
