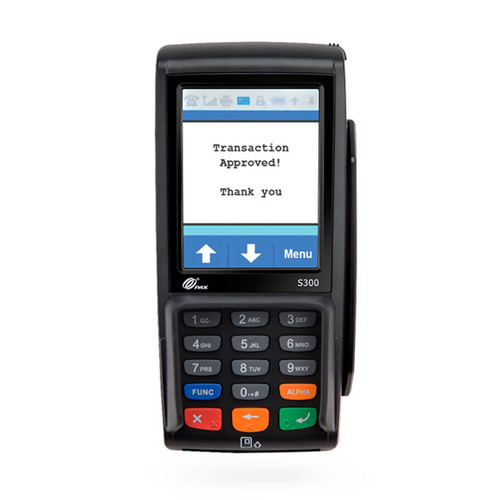

PAX S300 INTEGRATED RETAIL EMV PIN PAD

PAX’s S300 is the latest integrated retail payment solution for multilane merchants who wish to offer high levels of transactional security combined with contactless, e-Signature, magnetic stripe and Chip & PIN. With state of the art levels of security design, including PCI PTS 3.x and SRED, the S300 protects and encrypts all transaction information. Featuring a large color touch screen and loudspeaker, the S300 comes with a 32- bit ARM11 processor and massive amounts of memory for exceptional multimedia performance.

Providing various ports for extensive functionality, the S300 offers everything merchants could want in a sleek, stylish payment device. PAX's S300 is the world's most innovative PINpad powered by the secure and flexible platform.

Specifications

• Processor: 32-bit ARM11

  Memory :192MB (128MB Flash, 64MB DDR)

• Display: 3.5 inch 240 x 320 pixels colour TFT LCD

• Touch screen

• Keypad: 10 numeric keys, 5 function keys

• Back-lighting

• Magnetic Card Reader: Track 1 / 2 / 3, bi-directional

• Smart Card Reader: EMV L1 & L2

• Contactless Card Reader: MasterCard Contactless & Visa payWave

• American Express ExpressPay

• Discover DPAS

• JCB J/Speedy

• ISO14443 Type A/B

• Mifare®, Felica, NFC

  Card Slots: 3 SAMs

• Audio: Speaker, 90dB

• Communication Cable: 1 RS232

• 1 Mini USB 1 Ethernet

  Accessories: Multi-function cable

• Security: DUKPT, Master/Session, 3DES

• ANSI / ISO9564 format 0, 1, 3

• PIN ciphered key algorithm

• ANSI X9.9 / X9.19 MAC algorithm

• Environmental: 0°C to 50°C (32°F to 122°F) operating temperature

• 10% to 93% relative humidity, non-condensing

• -20°C to 70°C (-4°F to 158°F) storage temperature

• Voltage: External power supply

• 5VDC, 0.5A

  Physical: Length: 167mm

• Width: 81mm

• Height: 50mm

• Weight

• 290g

Certifcations:

• PCI PTS 3.x, SRED

• EMV Contact L1 & L2

• EMV Contactless L1

• Visa payWave

• MasterCard Contactless

• AMEX Expresspay

• Discover D-PAS

• JCB J/Speedy

• Interac Flash

• MasterCard TQM
