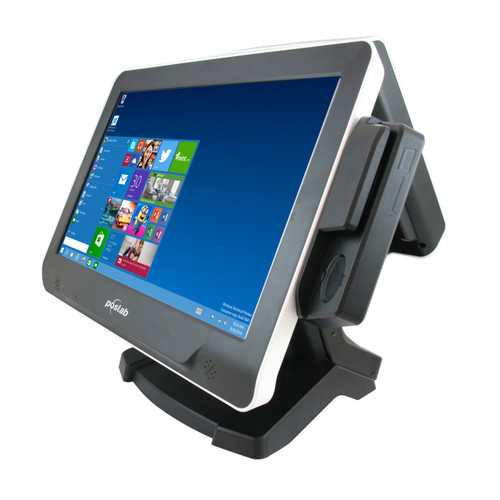

POSLAB WavePOS 88 15.6" All In One Touch Screen POS/ Including Card Reader ( MSR )

System

CPU Support

Intel® Celeron®Processor Bay-Trail J1900 up to 2.42Ghz

Memory

Support up to 8GB DDR3

Core Logic

Intel® Bay-Trail

Net Work

10/100/1000 Base-T Fast Ethernet

Power Supply

12V Power Adaptor

Color

Dark Grey / White

System weight

4.8 kgs

Dimension (WxHxD) mm

400x 310 x 260 mm

O/S

Windows7, POS Ready 7 , Windows 8 , Windows 10

Storage

HDD

1 x 2.5″ SATA HDD

SSD

SSD interface Max.512GB

eMMC

N/A

Micro SD

N/A

I/O Ports

Serial Ports

4 x external COM ( w/ +5V, +12V selectable )

USB Ports

5 x external USB Ports

mPCIe

1 x internal

Ethernet

1 x 10/100/1000 Mbps (RJ45)

PS/2

1 x PS / 2 Keyboard / Mouse port

VGA

1 x DB-15 VGA Interface

Parallel Port

1 x DB25

Audio

1 x 2W speaker

Cash Drawer

1 x RJ11

DC-IN

12V DC-IN

Power Switch

1 x Power Switch

Display

LCD

15.6″ TFT LCD Panel

Max. Resolutiion

1366 x 768

Brightness

220 nits

Touch Screen

5 wire resistive touch panel

HDMI

N/A

Environmental

Operating Condition

0°C ~ 40°C, 20%RH ~ 90%RH

Storage Condition

-20°C ~ 60°C, 10%RH ~ 90%RH

Peripheral Options

Printer

3″ Thermal Printer ( TP-260 , Printing speed 260mm/s )

Customer Display

VFD Type, 20 columns x 2 lines, each column 5×7 dotsRS232 (Default)

Multi-language / Epson Commands

MSR

 ISO Track 1/2/3 USB (default), JIS-I or II

i-button

Read only, USB interface

Wireless LAN

802.11 b/g/n

RFID

ISO 14443A, UrtraLight,Mifare@PRO, DESfire

Fingerprint

Yes

Scanner

External

Safety standards

 CCC / CE / FCC
